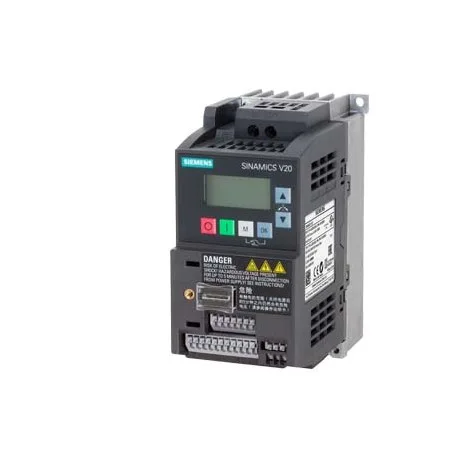

SINAMICS V20 200-240V 1AC -10/+10% 47-63Hz rated power 0.75 kW with 150% overload for 60 sec. unfiltered I/O: 4 DI, 2 DO,2 AI, 1 AQ fieldbus: USS/MODBUS RTU with built-in BOP protection: IP20/ UL open size: QB 68x142x128 (WxHxD)
| Product | |
| Article Number (Market Facing Number) | 6SL3210-5BB17-5UV1 |
| Product Description | SINAMICS V20 200-240V 1AC -10/+10% 47-63Hz rated power 0.75 kW with 150% overload for 60 sec. unfiltered I/O: 4 DI, 2 DO,2 AI, 1 AQ fieldbus: USS/MODBUS RTU with built-in BOP protection: IP20/ UL open size: QB 68x142x128 (WxHxD) |
| Product family | SINAMICS V20 basic converters |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data | |
| Region Specific PriceGroup / Headquarter Price Group | 350 / 350 |
| Surcharge for Raw Materials | None |
| Metal Factor | None |
| Delivery information | |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 40 Day/Days |
| Net Weight (kg) | 0,800 Kg |
| Packaging Dimension | 140,00 x 225,00 x 180,00 |
| Package size unit of measure | MM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4042948669860 |
| UPC | 804766253300 |
| Commodity Code | 85044084 |
| LKZ_FDB/ CatalogID | SINAMICS V20 |
| Product Group | 5680 |
| Group Code | R220 |
| Country of origin | China |
| Compliance with the substance restrictions according to RoHS directive | Since: 05.07.2010 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates | There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Classifications | |
| Version Classification eClass 1.2 27-02-31-01 eClass 6 27-02-31-01 eClass 7.1 27-02-31-01 eClass 8 27-02-31-01 eClass 9 27-02-31-01 eClass 9.1 27-02-31-01 ETIM 7 EC001857 ETIM 8 EC001857 IDEA 4 4139 UNSPSC 15 39-12-10-07 |
