Balluff standard inductive sensors are ideal for object detection in metal areas. They are
short-circuit
protected and operate without contact, making them wear-free and very resistant to dirt and
contamination.
The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions.
The rugged
and
reliable inductive Global Sensors provide especially economical solutions. We can also delivery the
broad
range of these over 500 preferred types worldwide in the shortest possible time.

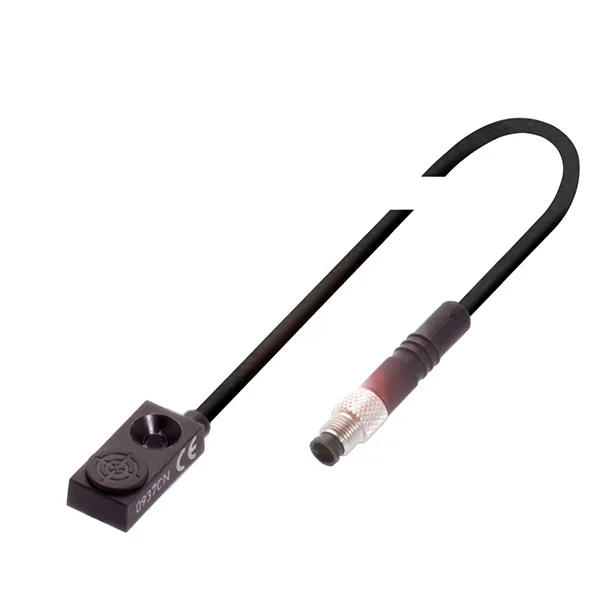

Part Number – BES01YC
| Dimension | 16 x 8 x 4.7 mm |
| Style | 16x8x4.7 |
| Installation | for flush mounting |
| Range | 1.5 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 2500 Hz |
| Housing material | PA 6, GF30 |
| Material sensing surface | PA 6, GF30 |
| Connection | Cable with connector, M5x0.5-Male, 0.20 m, PUR |
| Operating voltage Ub | 10…30 VDC |
| Ambient temperature | -25…70 °C |
| IP rating | IP67 |
| Approval/Conformity | cULus, CE, EAC, WEEE |
