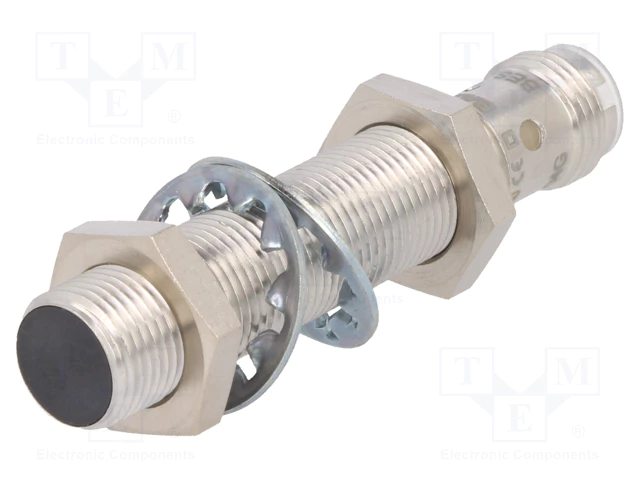

Part Number – BES0068

Inductive standard sensors with preferred types

Dimension – Ø 12 x 65 mm

Style – M12x1

Installation – for flush mounting

Range – 4 mm

Switching output – PNP normally open (NO)

Switching frequency – 2500 Hz

Housing material – Brass, Nickel-free coated

Material sensing surface – PBT

Connection – Connector, M12x1-Male, 3-pin

Operating voltage Ub – 10…30 VDC

Ambient temperature – -25…70 °C

IP rating – IP68

Approval/Conformity – CE, UKCA, cULus, WEEE
