Part Number – BHS001L

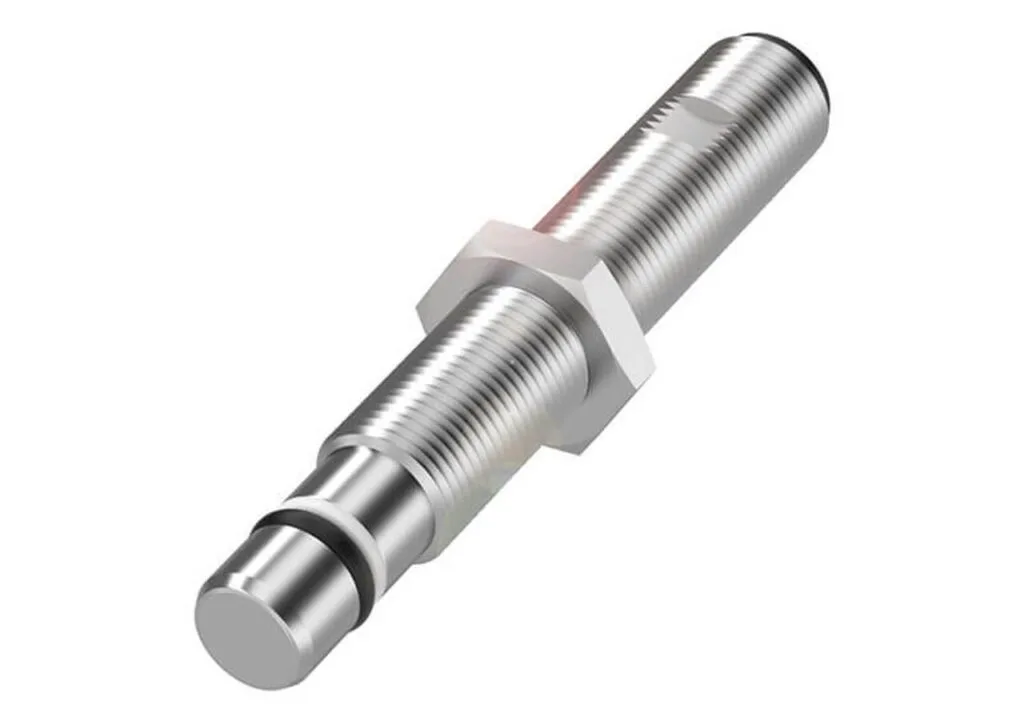

BALLUFF M12 x 1 Inductive Proximity Sensor – Barrel, PNP Output, 1.5 mm Detection, IP68

BES High Pressure 3-Wire M12 Inductive Proximity Sensor

This range of M12 cylindrical inductive proximity sensors from the BALLUFF BES series are designed to with stand pressures up to 500 bars and are perfect to be used in a wide variety of metal detection applications with in high pressure industrial environments.

Specifications

diameter: 12mm
sensing range: 1.5mm
pressure rating: 500 bar
output: PNP, NO (3-wire)
power supply: 10÷30 VDC
material: stainless steel
type: flush mounted
electrical connection: M12x1-Male, 4-pole
